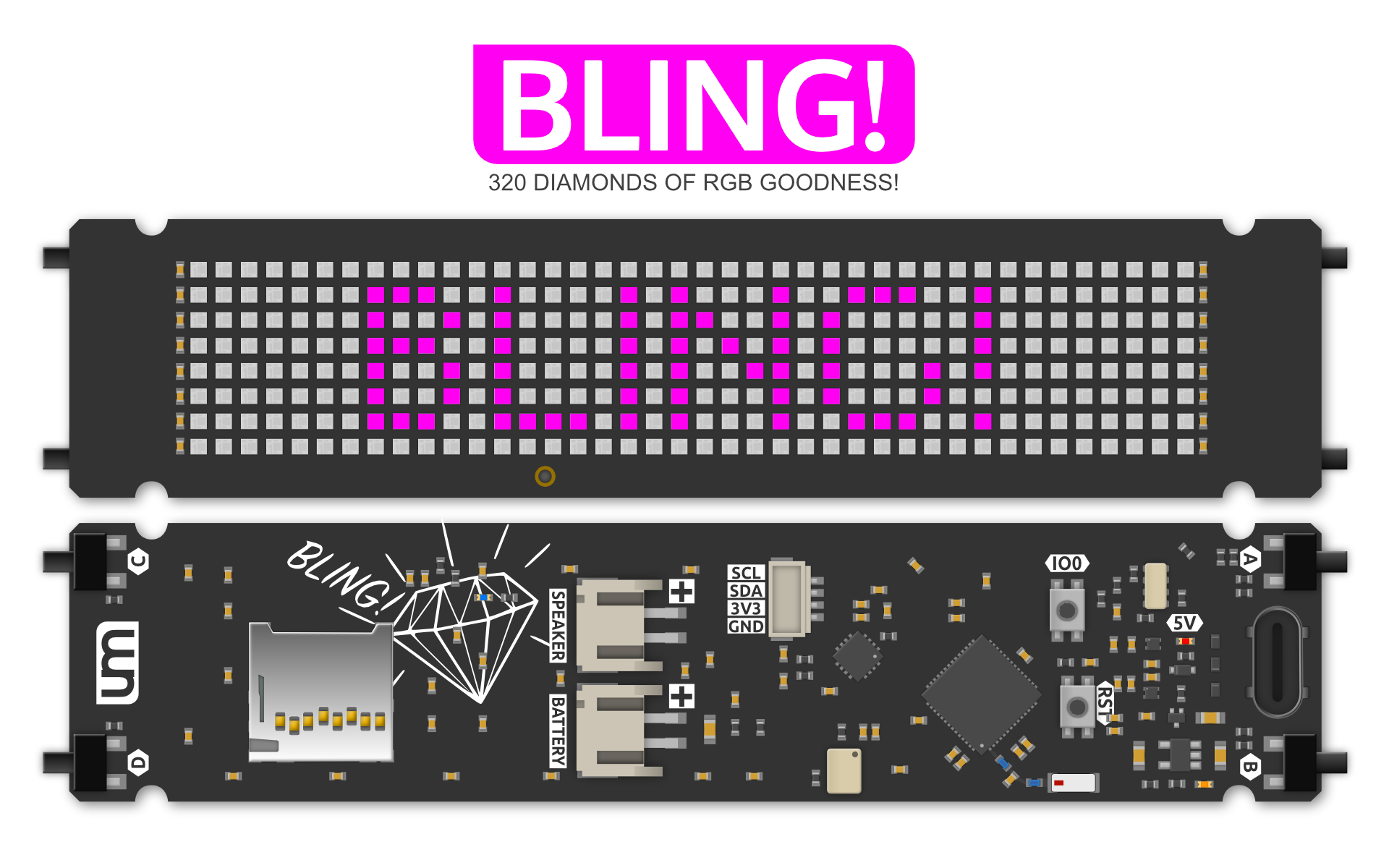

BLING! Is a magnificent RGB LED board, boasting 320x 1x1mm Addressable RGB LEDs in an array of 40×8.
The full version of BLING comes with an ESP32-S3 with 8MB of Flash, 2MB of PSRAM, and a bunch of onboard features and peripherals. Want to build a cool RGB Clock with custom alarm sounds? No problem! Want to build a portable Web Radio device? Yup, you can do that too! Want to play with captured audio? Maybe a nice audio level display? BLING has you covered!
Bling also comes with a user programable power switch to enable or disable the power to the LED matrix (more on that below), plus 4 user programmable buttons and a USB-C connector for power and for charging a battery, if you connect one.
BLING! Features & Specifications
– 32Bit Dual Core 240MHz
– RISC-V ultra low power core
– 2.4GHz WiFi – 802.11b/g/n
– Bluetooth 5, BLE + Mesh
– 8MB QSPI Flash
-2MB Extra QSPI PSRAM
– 40×8 RGB LED Matrix
– 4 User programmable buttons
– User programmable Matrix power
– Battery charging
– USB-C Connector + ESD Protection
– Reverse USB back-feed protection
– 700mA 3.3V LDO Regulator
Peripherals + Connectors
– I2S MEMS Microphone
– I2S Audio Amplifier
– Low Power RTC
– uSD Card Slot
– STEMMA/QT Connector
– JST Battery connector
– JST Speaker connector

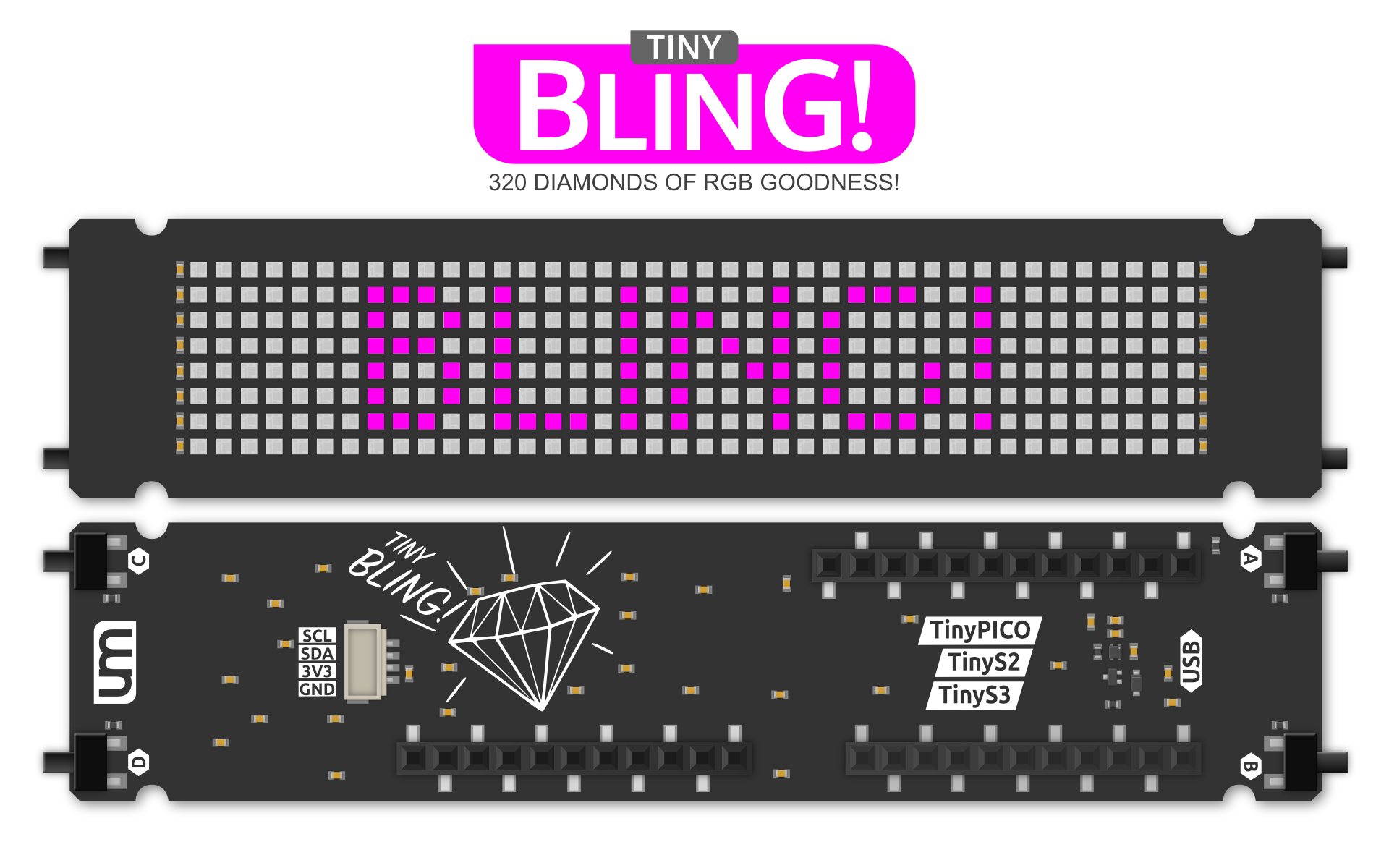

TinyBLING doesn’t have an included ESP32-S3 + peripherals on the back, but instead provides headers to plug in an Unexpected Maker Tiny board (TinyPICO, TinyS2, TinyS3 and the new TinyC6) to act as the brains for your project.
You also get a STEMMA/QT connector and a bunch of IO and power broken out on an extra header, for easy expansion. TinyBLING still has a user programable power switch to enable or disable the power to the LED matrix (more on that below), plus 4 user programmable buttons.

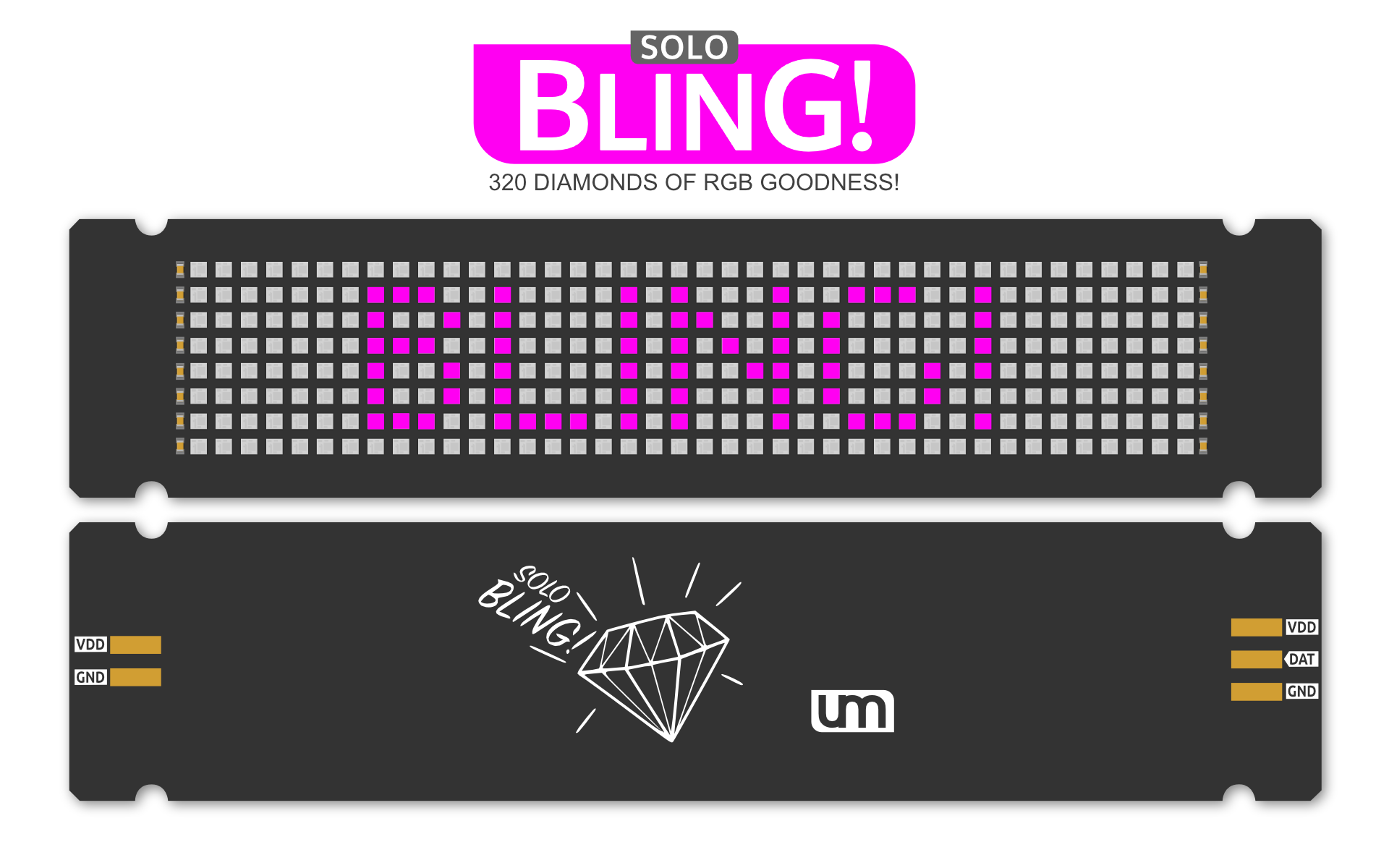

Finally, hello SoloBLING!
SoloBLING is just the 40×8 RGB LED matrix on its own. It provides the BLING, you provide everything else.
